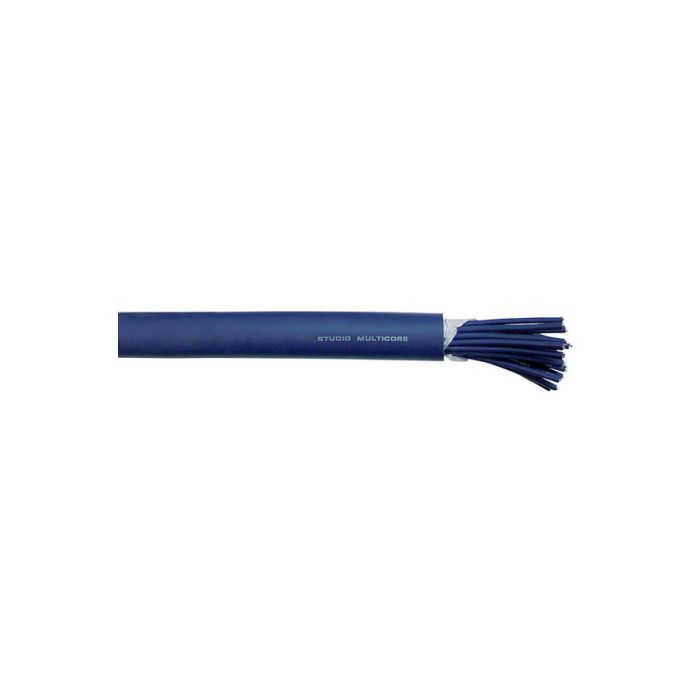

DAP MK-2422 24 Parige Studio Multicore, single shielded per meter
DAP MK-2422 24 Parige Studio Multicore, single shielded per meter
The DAP mulitpairs are extremely flexible and rugged, suitable for very difficult environments, Studio, Stage and above all in on the road\" use. The inner conductors are double colour coded and shielded with alufoil, each pair XLPE Isolated and numbered.
Single shielded multicable
colour coded
Tough, roadproof quality
Each pair OFC-copper shielded
1. Masterjacket: Dark blue flexible roadproof PVC
2. Separator: Twistet cotton paper
3. Pairjacket: Numbered dark-blue PVC 3 mm
4. Pairshield: Silvercoatet Alufoil
5. Conductor insulation: Polyethelene red and white 1mm
6. Inner conductor: Oxigene free copper 99,997 OFC
7. Earth drainwire: Tinned copper
Each pair with alu-foil (OFC Copper), with exception of MK-3222.
Min. orderquantuty: 1m.
Max. on drum: 500m.
Technical Info
Number of pairs: 24
Conductor insulation in mm: PE, red+white, 1,0
Pair jacket in mm: PVC blue, (numbered), 3,0
Pair shield: Alufoil + tinned drainwire
Master jacket in mm: PVC, dark blue, 22
Minimal bending radius: ?220
Weight (kg/100 m): 655
