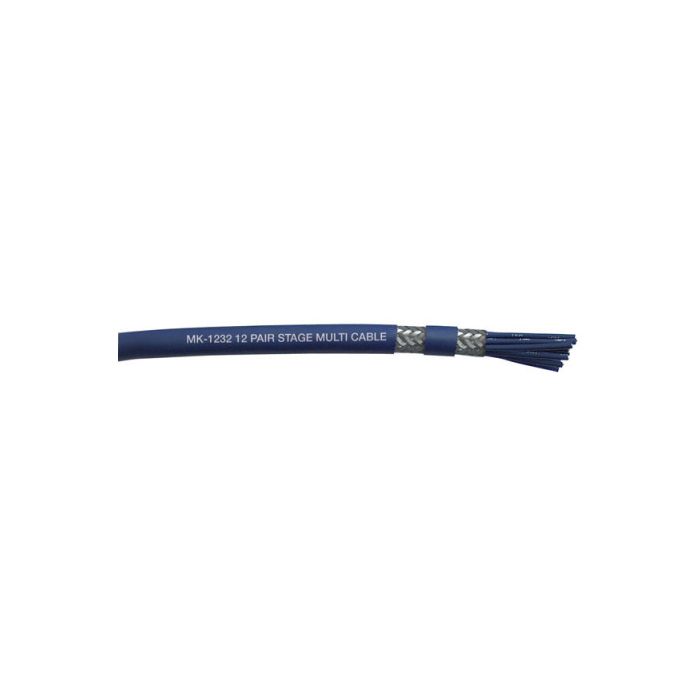

DAP MK-1232 12 Parige Stage Multicore, double shielded per meter

DAP MK-1232 12 Parige Stage Multicore, double shielded per meter

The DAP Pro-Core Multicable: professional features and top-notch materials have become a standard in this productline. But the DAP-engineers knew there was some room left for improvements: the Pro-core line is now also AES-EBU compliant. Designed for hard on-the-road\" use, so extremely well suited for rental companies, and the professional demanding power-user\" who needs a good solid multicore that is also sufficient shielded. Features: tough but flexible, double shielded for more protection and less noise, good for outdoor use, even under hard circumstances and in all weatherconditions.

1. Masterjacket: Dark blue flexible roadproof PVC
2. Mastershield: Braided tinned copper
3. Pairjacket: Numbered dark-blue PVC 3 mm
4. Pairshield: Silvercoatet Alufoil
5. Conductor insulation: Polyethelene red and white 1mm
6. Inner conductor: Oxigene free copper 99,997 OFC
7. Earth drainwire: Tinned copper

Double shielded multicable
colour coded
Tough, roadproof quality
Each pair OFC-copper shielded

Each pair: alu-foil / drainwire-shielded and total:
tinned copper braided shield.
Min. orderquantuty: 1m.
Max. on drum: 500m.

Technical Info
Number of pairs: 12
Conductor insulation in mm: PE, red+white, 1,0
Pair jacket in mm: PVC blue, (numbered), 3,0
Pair shield: Alufoil + tinned drainwire
Master jacket in mm: PVC, dark blue, 16,5
Master Shield: braided tinned copper
Minimal bending radius: ?15 mm
Weight (kg/100 m): 38
