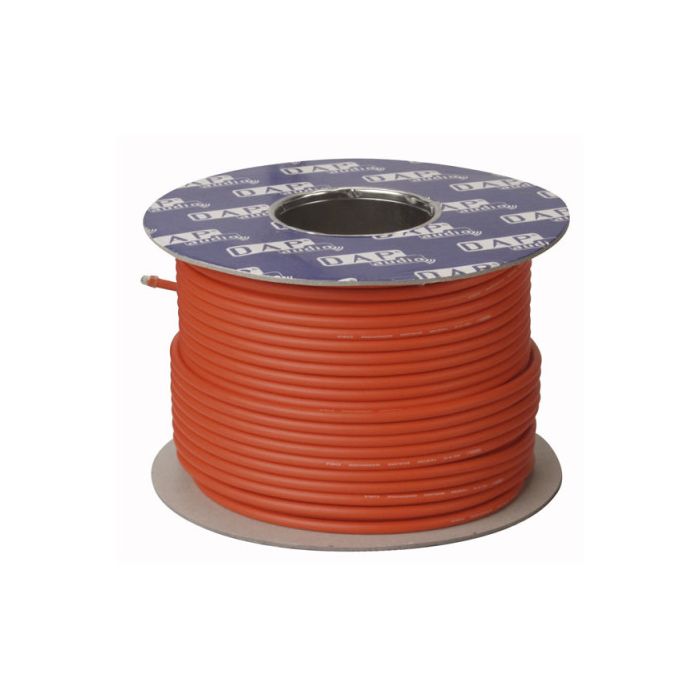

DAP MC-226 Rood Microfoon Kabel dubbele isolatie 100mtr op rol

DAP MC-226 Rood Microfoon Kabel dubbele isolatie 100mtr op rol
Technical Info
 Conductor drains  mm: OFC 15 x 0,12
 Conductor insulation: PE red+white
 Conductor insulation  in mm: 1,5
 Filler material: -
 1st shield: 2 x Conductive plastic
 2nd shield: OFC twisted 96 x 0,12
 Outer isolation: PVC black, blue, red, yellow, green
 Outer isolation  in mm: 6

Conductor resistance: 90 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
