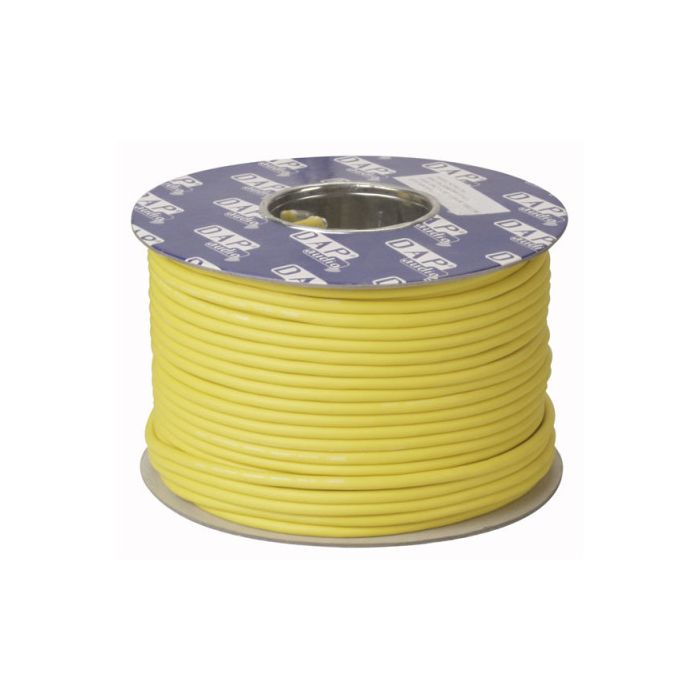

DAP MC-216 Geel microfoon - line Kabel 100 meter op rol

DAP MC-216 Geel microfoon - line Kabel 100 meter op rol
Technical Info
 Conductor drains  mm: OFC 28 x 0,10
 Conductor insulation: PE red+blue
 Conductor insulation  in mm: 1,5
 Filler material: paper + cotton yarn
 1st shield: OFC twisted 83 x 0,12
 2nd shield: -
 Outer isolation: PVC black, blue, red, yellow, green
 Outer isolation  in mm: 6

Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
