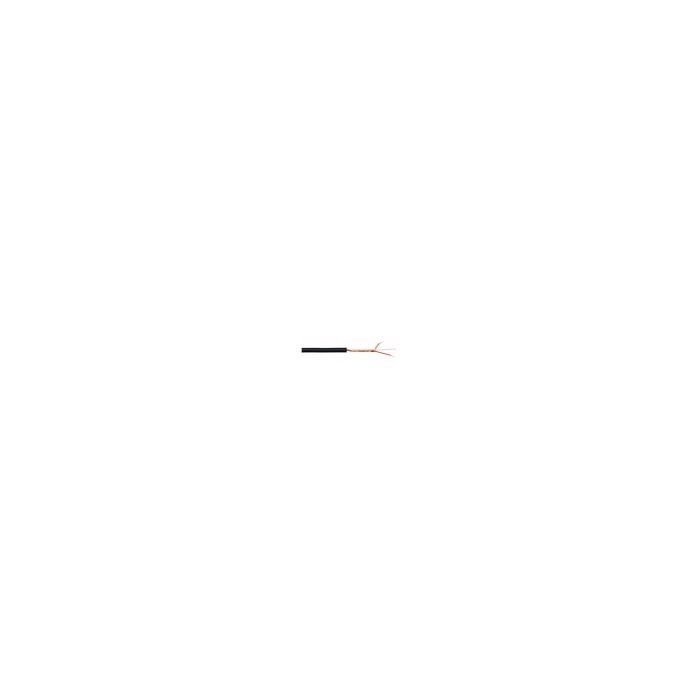

DAP MC-20 Microfoon-/line-kabel, 100 m op rol

 DAP MC-20 Microfoon-/line-kabel, 100 m op rol
Technical Info
 Conductor drains  mm: OFC 10 x 0,10
 Conductor insulation: PE red+white
 Conductor insulation  in mm: 1,0
 Filler material: -
 1st shield: OFC twisted 40 x 0,12
 2nd shield: -
 Outer isolation: PVC matte black
 Outer isolation  in mm: 5

Conductor resistance: 160 Ohm/Km
Shield resistance: -
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield / Inner conduct.: -
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
