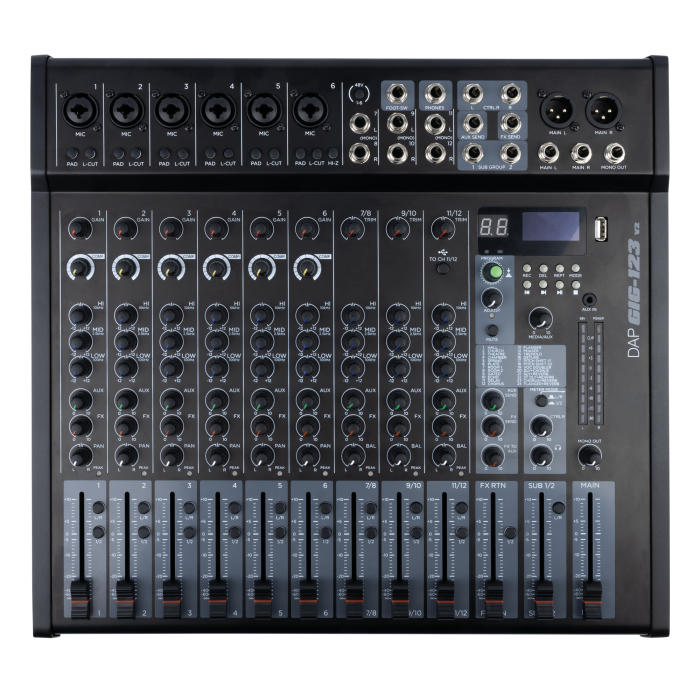

DAP GIG-123 V2 12-channel analogue mixer with FX
€ 330,00
€ 272,73
?
SKU
D2403
DAP GIG-123 V2 12-channel analogue mixer with FX
DAP GIG-123 V212-channel analogue mixer with FX
6x XLR/jack combo with -20 dB pad, phantom power, compression, 3-band EQ, low-cut
3x XLR stereo line input with 3-band EQ, pan and level controls
24 internal effects and FX send plus Aux send outputs
Stereo subgroup with fader
USB-C interface with 2-in/2-out and USB-A interface with media player/recorder
The DAP GIG-123 V2 is a compact yet capable 12-channel mixer designed for live performances, studio sessions and hybrid setups. It offers a wide range of inputs, routing options, professional features and onboard effects, making it ideal for musicians, sound engineers and content creators who demand flexibility without compromising on sound quality.
It features six XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 6 includes a Hi-Z switch, allowing direct connection of instruments such as electric guitars. All six mono channels offer gain control, compressor, 3-band EQ, FX and AUX send knobs, pan control, mix level fader, and clip LED indicators. Channels 7-12 provide stereo line-level inputs via dual 6.3 mm jacks, each with gain control, 3-band EQ, FX and AUX send level, pan control and mix level fader. Additional inputs include a 3.5 mm Aux minijack, a USB media player and BT connectivity, which all share a level knob.
The internal effects engine provides a selection of 24 effects, including reverbs, delays and modulations that can be applied to all channels except the 3.5 mm minijack input, BT input and USB media player. For external processing, an FX Sends output allows routing to outboard gear, with the option to loop the processed signal back into an unused channel. This output can also serve as a monitor send bus, offering additional flexibility. A dedicated Aux bus is available for creating custom monitor mixes, while a stereo subgroup with its own fader and output enables grouped control and parallel processing. All channels except the minijack and USB media player can be routed to this subgroup. For studio use, a control room output with separate level control runs in parallel to the headphone output.
The USB-C interface allows direct connection to a computer for recording or playback, the latter is shared with channels 11 and 12. The main output is available via balanced XLR and jack connectors, and is also offered as a mono sum with separate level control. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.
It features six XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 6 includes a Hi-Z switch, allowing direct connection of instruments such as electric guitars. All six mono channels offer gain control, compressor, 3-band EQ, FX and AUX send knobs, pan control, mix level fader, and clip LED indicators. Channels 7-12 provide stereo line-level inputs via dual 6.3 mm jacks, each with gain control, 3-band EQ, FX and AUX send level, pan control and mix level fader. Additional inputs include a 3.5 mm Aux minijack, a USB media player and BT connectivity, which all share a level knob.
The internal effects engine provides a selection of 24 effects, including reverbs, delays and modulations that can be applied to all channels except the 3.5 mm minijack input, BT input and USB media player. For external processing, an FX Sends output allows routing to outboard gear, with the option to loop the processed signal back into an unused channel. This output can also serve as a monitor send bus, offering additional flexibility. A dedicated Aux bus is available for creating custom monitor mixes, while a stereo subgroup with its own fader and output enables grouped control and parallel processing. All channels except the minijack and USB media player can be routed to this subgroup. For studio use, a control room output with separate level control runs in parallel to the headphone output.
The USB-C interface allows direct connection to a computer for recording or playback, the latter is shared with channels 11 and 12. The main output is available via balanced XLR and jack connectors, and is also offered as a mono sum with separate level control. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.
Specifications
Inputs Mono Inputs 6
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 60 dB
Mono Input Impedance 3000 Ω
Stereo Inputs 3
Stereo Input Connector TRS balanced 6.3 mm
Stereo Input Gain Range 20 dB
Stereo Input Impedance 10000 Ω
Auxiliary Inputs 1
Auxiliary Input Connector TRS balanced 3.5 mm
Auxiliary Input Impedance 10000 Ω
FX Return Inputs 1
FX Return Connector TRS balanced 6.3 mm
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR, TRS balanced 6.3 mm
Main Output Maximum Level 22 dBu
Main Output Impedance 100 Ω
Auxiliary Outputs 1
Auxiliary Output Connector TRS balanced 6.3mm
Auxiliary Output Impedance 120 Ω
Group Outputs 2
Group Output Connector TS unbalanced 6.3 mm
Group Output Impedance 120 Ω
FX Send Outputs 1
FX Send Connector TRS balanced 6.3 mm
FX Send Impedance 120 Ω
Control Room Output 1
Control Room Output Connector TRS balanced 6.3 mm
Control Room Output Impedance 120 Ω
Headphone Output 1
Headphone Output Connector TRS balanced 6.3 mm
Headphone Output Impedance 32 Ω
Digital Playback
Audio InterfaceYes
Audio Interface USB Input 1
Audio Interface Input Connection USB-C
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Media Player Yes
Audio Module Supported Files MP3, WAV, WMA
Audio Module Maximum Storage Size 64GB
Audio Module Media In/Out USB-A
Audio Module USB Type 2.0
Audio Specifications
THD Level % < 0.2 %
Signal-to-noise Ratio > 108 dB
Crosstalk -86 dBu
Frequency Response Minimum 20 Hz
Frequency Response Maximum 22000 Hz
Phantom Power 48V
Sound Editing
Dynamics Processing Compressor
Built-in FX Yes
FX Types: Chorus, Delay, Echo, Flanger, Hall, Phaser, Plate, Reverb, Room, Tremolo
Wireless Specifications
Bluetooth Yes
Bluetooth Version 5.0
Bluetooth Range 20 m (65,617 ft)
Control and Programming
Display 7 segment
Electrical Specifications and Connections
Power Supply 100-240 VAC 50/60 Hz
Output voltage 15 V DC
Power Consumption 13W
Power Connector In Low Voltage DC plug Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz
Output voltage 15 V DC
Output current DC (mA) 1000 mA
Mechanical Specifications
Fader Length 70mm (2.756″)
Height (mm) 75mm (2.953″)
Width (mm) 400mm (15.748″)
Length (mm) 367mm (14.449″)
Installation Depth (Excl. Connector) 75 mm (2.953″)
Flightcase Size Optional 19''
Rack Units 9 U
Housing Metal
Color Black
Weight 4.04 kg (8.907 lb)
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators +48V, BT Pairing, Clip, Output level, Power
Handles All sides
Included Items
Included Accessories Adapter
