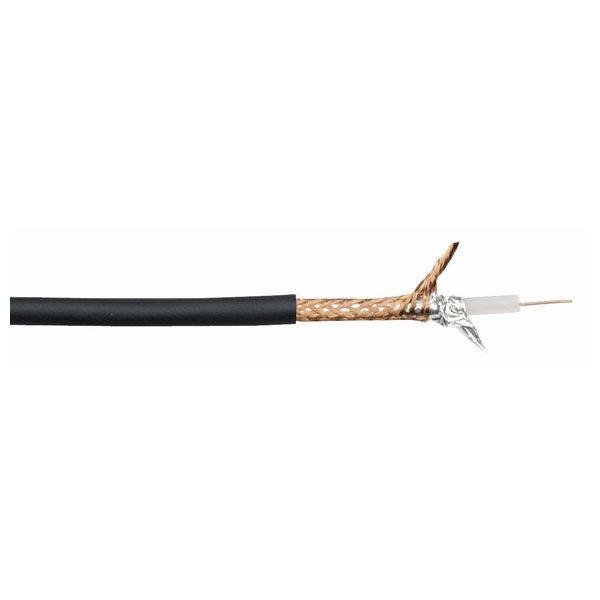

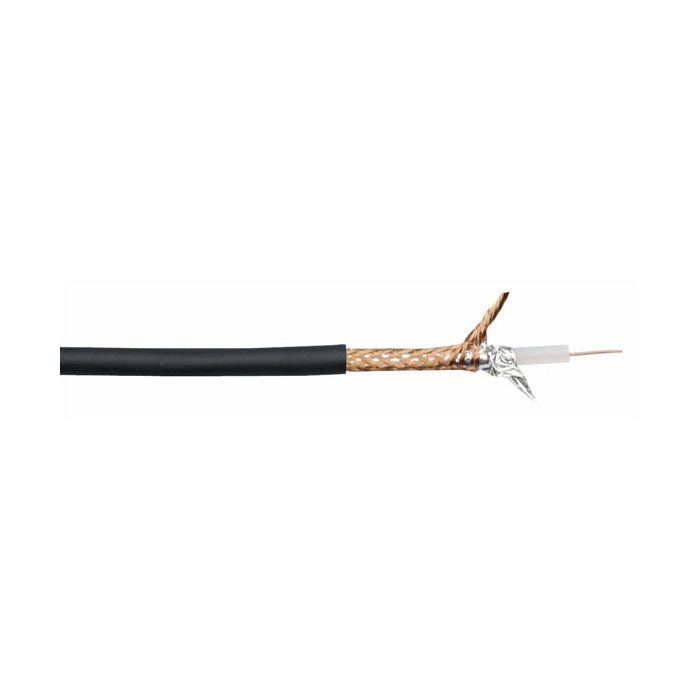

DAP AV-80 Dubbel afgeschermde videokabel 75 Ohm 100 m op rol

DAP AV-80 Dubbel afgeschermde videokabel 75 Ohm 100 m op rol

Conductor drains Ø mm: 0,58
Conductor insulation: PE
Conductor insulation Ø mm: 3,71
Conductor resistance Ohm/m: 65 Ohm/km
Outer insulation: PVC 6,2 Ø mm
Working temperature: -20~50 °C (min./max.)
Voltage overflash: 30V
Nominal impedance: 75 Ohm

Attenuation:
10 MHz: 0,01020 /90 MHz: 0,07210 /100 MHz: 0,06840 /220 MHz: 0,11920
470 MHz: 0,20150 /770 MHz: 0,28750 /1000 MHz: 0,35850
