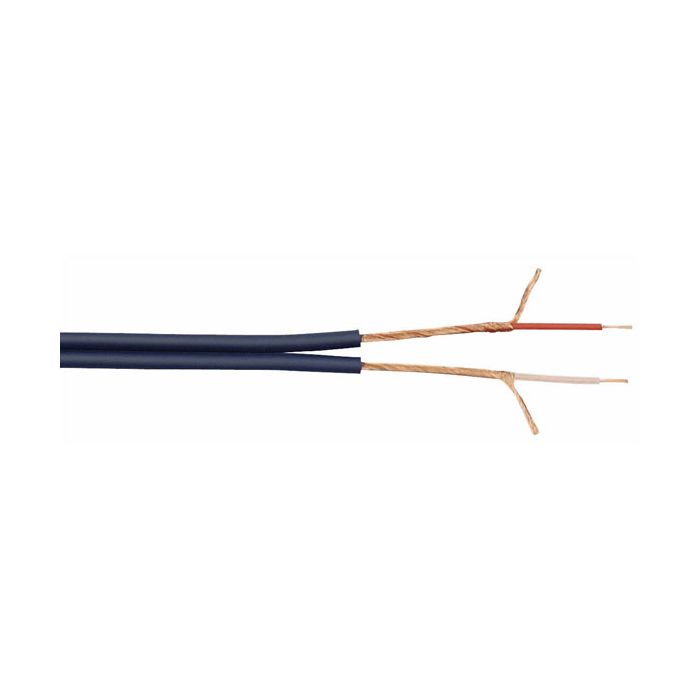

DAP AV-48 Audio-/videokabel asymmetrisch 75 Ohm 100 m op rol

DAP AV-48 videokabel asymmetrisch 75 Ohm 100 m op een spoelConductor drains Ø mm: OFC 20 x 0,12 Conductor insulation: PE red + transparent Conductor insulation Ø mm: 1,3 1st shield: OFC twisted 32 x 0,12 2nd shield: - Outer isolation: PVC dark blue Outer isolation Ø mm: 2x4Conductor resistance: 80 Ohm/Km Shield resistance: 50 Ohm/Km Capacity Inner cond Shield /Inner cond: 160 pF/m Working temperature min./max.: -20~60 °C Working Voltage overflash: 30V Nom Impedance: 35 OhmAttenuation: 10 MHz: 0,02480 /90 MHz: 0,28000 /100 MHz: 0,28530 /220 MHz: 0,55350 470 MHz: 1,33130 /770 MHz: 2,21180 /1000 MHz: 3,0271
