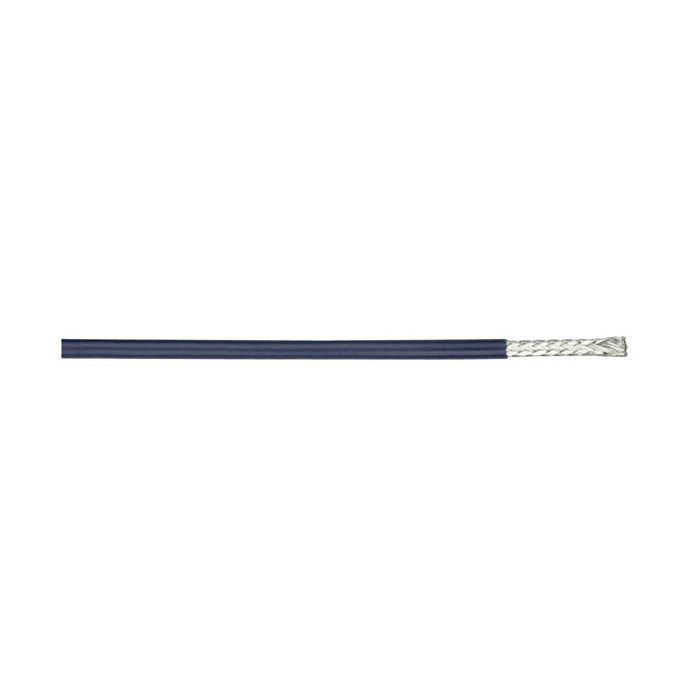

DAP AV-20 Dubbel afgeschermde RG-179 videokabel ( uitloop product )

DAP AV-20 Dubbel afgeschermde RG-179 videokabelDouble shielded RG-179 video cableConductor drains: Ø 1 x 0,3 mm Oxygen Free Copper Conductor insulation: Ø 1,4 mm Foam Polyethylene Conductor resistance: 243,9 Ohm/km Shield-1: Aluminium Shield-2: 16 x 5 x 0,12 braided Oxygen Free Copper Outer Jacket: Ø 2,54 mm matte blue PVC Nominal Capacitance: 57,4 pF/m Nominal impedance: 75 Ohm Weight/100m: 1,5 kgNominal Attenuation /100m: 71,5 MHz: 18.57 dB /135 MHz: 24.64 dB /270 MHz: 32.73 dB /360 MHz: 40.03 dB 540 MHz: 49.54 dB /750 MHz: 58.40 dB /1500 MHz: 83.33 dB /3000 MHz: 120.41dB
