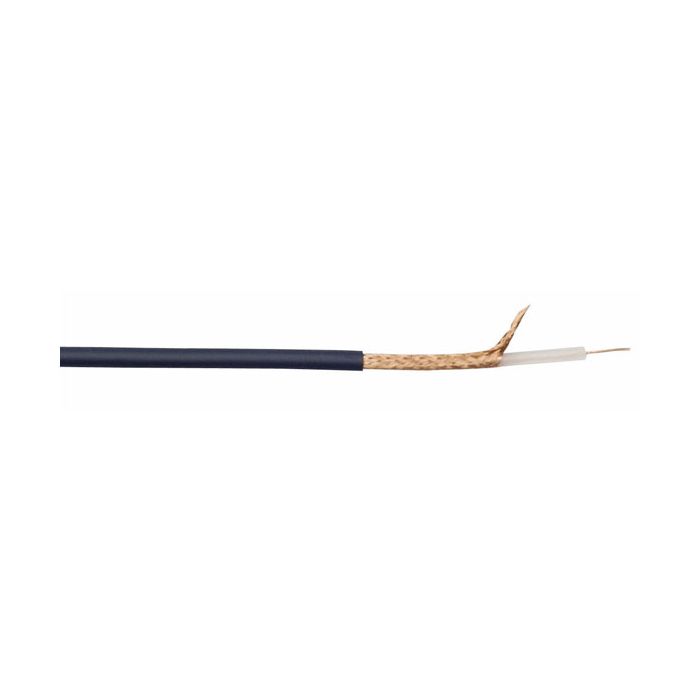

DAP AV-14 Audio-/videokabel 75 Ohm 100 m op een spoel

DAP AV-14 Audio-/videokabel 75 Ohm 100 m op een spoel

Conductor drains Ø mm: 0,4
Conductor insulation: PE
Conductor insulation Ø mm: 2,6
Conductor resistance Ohm/m: 138 Ohm/km
Outer insulation: PVC 4,2 Ø in mm
Working temperature: -20~50 °C (min./max.)
Voltage overflash: 30V
Nominal impedance: 75 Ohm

Attenuation:
10 MHz: 0,02270 /90 MHz: 0,18650 /100 MHz: 0,19060 /220 MHz: 0,30640
470 MHz: 0,76580 /770 MHz: 0,96420 /1000 MHz: 1,6122
