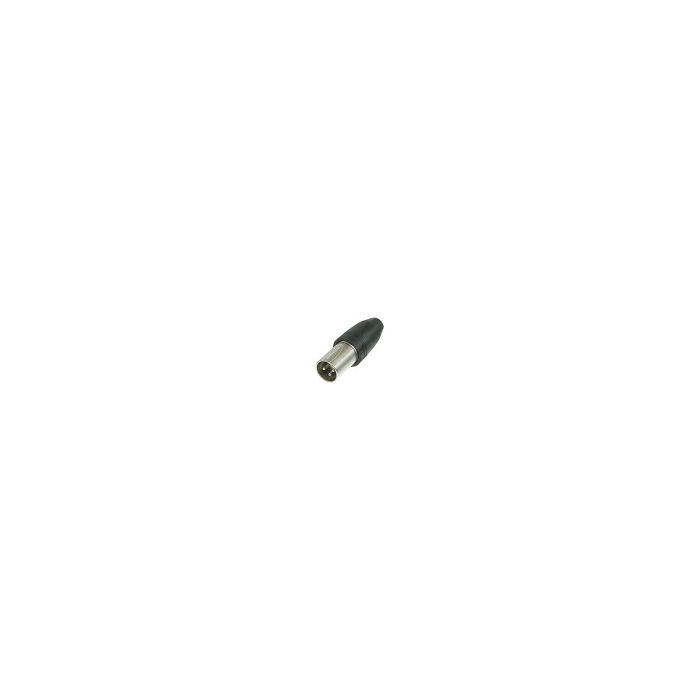

Neutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts
€ 235,97
€ 195,02
?
SKU
NC3MXXHDD
Neutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts
Neutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts
Neutrik XLR 'Heavy Duty' IP connector
3p Male Silver Housing, silver contacts
• "Heavy duty" cable connector for outdoor use
• Rubber sealing jacket protects against water ingress and mechanical shock
• Rugged zinc diecast shell, long-lasting and dependable
• Internal thread on shell is well protected against any damage
The Neutrik XX-HDD Series is a "heavy duty" XLR cable connector for outdoor use.
All metal design, dust and water protected according to IP 67 by mating with related XX-HDD cable connector.
Specifications
Electrical:
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ (inner)
Rated current per contact 16 A
Rated voltage 50 V
Mechanical:
Cabel O.D. 3,5 – 8,0 mm
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material:
Boot Polyurethan
Contacts Brass
Insert Polyamide
Shell Zinc diecast
Shell plating Nickel
Strain relief Polyacetal
Environmental:
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
