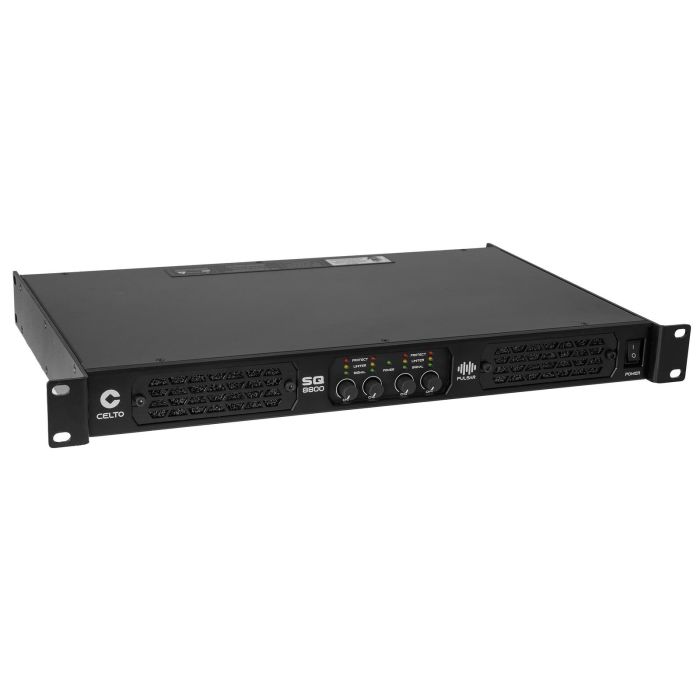

CELTO SQ8800 Amplifier

Class D multi-channel PA amplifier with SMPS, 4 x 1300 W RMS (8 ohms), 4 x 2200 W RMS (4 ohms)

• (19") 48.3 cm rack installation 1 U
• Highly efficient air flow from front to rear
• The device is cooled by temperature-controlled fan
• Built with NEUTRIK connector
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Protection class:	Protection class I
  Output power:	4 x 1300 W RMS (8 ohms) 4 x 2200 W RMS (4 ohms) 4 x 2000 W RMS (2 ohms)
  Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
  Cable construction:	3 x 3 mm² power cable
  Cable length:	1.5 m detachable
  Frequency range:	6 - 20000 Hz
  S/N ratio:	>107 dB
  THD:	<0.05 % at 1 kHz
  Cooling:	4 x temperature-controlled fan , air flow from front to rear
  Impedance:	Input: 20 kOhm , bal.
  Gain:	34 dB
  Housing color:	Black matte
  Circuitry:	Class D
  Slew rate:	>60 V/µs
  Damping factor:	>800
  Control elements:	Power switch, mode switch (stereo/parallel/bridged), level control per channel
  Controls:	Short-circuit; Overvoltage; current limiting; overload; overheat
  Status LED:	Power, signal, limit, protect
  Connections:	Input: line via 4 x 3-pin XLR Output: speaker via 4 x 4-pol SpeakON mounting version (F)
  Input channels:	4 x mono via XLR, channel control via rotary dial
  Max. level:	Input: +20 dBu, bal.
  Use of brands:	Built with NEUTRIK connector
  Housing design:	(19") 48.3 cm rack installation 1 U
  Dimensions:	Width: 48.2 cm Depth: 28.1 cm Height: 4.5 cm
  Weight:	7.00 kg
