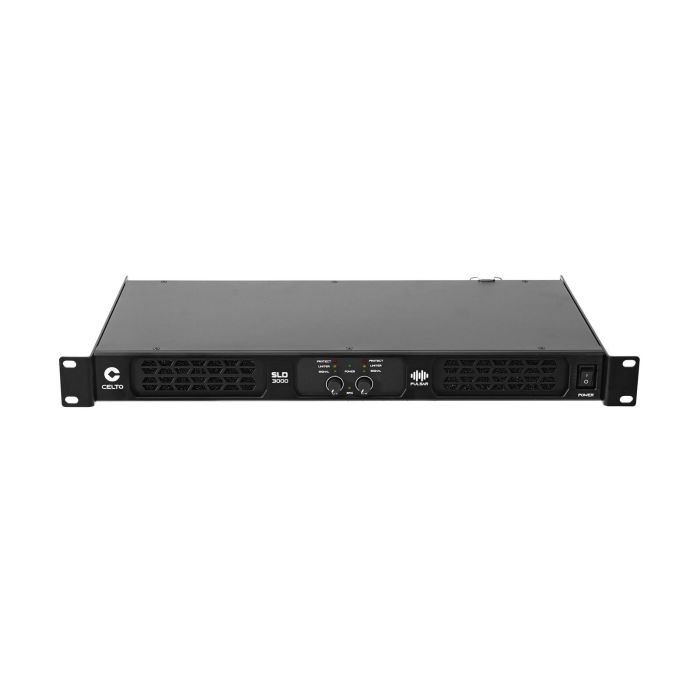

CELTO SLD3000 Amplifier

Class D multi-channel PA amplifier with SMPS, 2 x 1000 W RMS (8 ohms), 2 x 1500 W RMS (4 ohms)

• (19") 48.3 cm rack installation 1 U
• Highly efficient air flow from front to rear
• The device is cooled by temperature-controlled fan
• Built with NEUTRIK connector
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Protection class:	Protection class I
  Output power:	2 x 1000 W RMS (8 ohms) 2 x 1500 W RMS (4 ohms) 2 x 1500 W RMS (2 ohms)
  Power connection:	Mains input via IEC connector (M) mounting version (provided)
  Cable length:	Detachable
  Frequency range:	5 - 20000 Hz
  S/N ratio:	>110 dB
  THD:	<0.01 % at 1 kHz
  Cooling:	Temperature-controlled fan , air flow from front to rear
  Impedance:	Input: 20 kOhm , bal.
  Gain:	34 dB
  Housing color:	Black
  Circuitry:	Class D
  Slew rate:	>50 V/µs
  Damping factor:	>2500
  Crosstalk:	>75 dB
  Control elements:	Mode switch (stereo/parallel/bridged)
  Controls:	Short-circuit; Overvoltage; current limiting; overload; overheat
  Status LED:	Power, signal, limit, protect, bridged
  Connections:	Output: speaker via 2 x 4-pol SpeakON mounting version (F) Input: line via 2 x 3-pin XLR
  Max. level:	Input: +20 dBu, bal.
  Use of brands:	Built with NEUTRIK connector
  Housing design:	(19") 48.3 cm rack installation 1 U
  Dimensions:	Width: 48.2 cm Depth: 24.2 cm Height: 4.5 cm
  Weight:	4.25 kg
