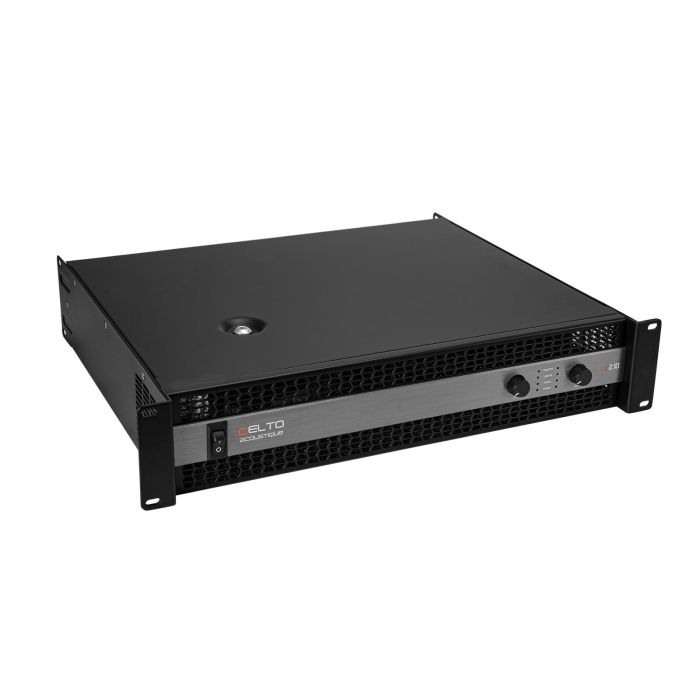

CELTO C2.10 Amplifier

Class H core amplifier, 2 x 1100 W RMS (4 ohms), 2 x 750 W RMS (8 ohms)

• (19") 48.3 cm rack installation 2 U
• Highly efficient air flow from front to rear
• The device is cooled by temperature-controlled fan
• Technical specifications

  Power supply:	230 V AC, 50 Hz
  Protection class:	Protection class I
  Output power:	2 x 1100 W RMS (4 ohms) 2 x 750 W RMS (8 ohms) 1 x 2200 W RMS bridged (8 ohms)
  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  Fuse:	15 A fuse resettable
  Frequency range:	20 - 20000 Hz
  S/N ratio:	>108 dB
  THD:	<0.1 % at 1 kHz
  Cooling:	3 x temperature-controlled fan , air flow from front to rear
  Impedance:	Input: 20 kOhm
  Gain:	40 dB
  Circuitry:	Class H
  Slew rate:	20 V/µs
  Damping factor:	>500
  Crosstalk:	>65 dB
  Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), groundlift selector
  Controls:	Softstart; short-circuit; Overvoltage; overload; current limiting; DC voltage; overheat
  Status LED:	Power, signal, limit, protect
  Connections:	Input: line via 2 x 3-pin XLR (F) mounting version Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x 4-pol SpeakON mounting version (F) Output: 4 x screw plug-in terminal
  Input sensitivity:	0.775 V
  Color:	Black, matte, painted
  Housing design:	(19") 48.3 cm rack installation 2 U
  Dimensions:	Width: 48.3 cm Depth: 38.8 cm Height: 8.8 cm
  Weight:	15.90 kg
