Briteq BT-LEDROTOR

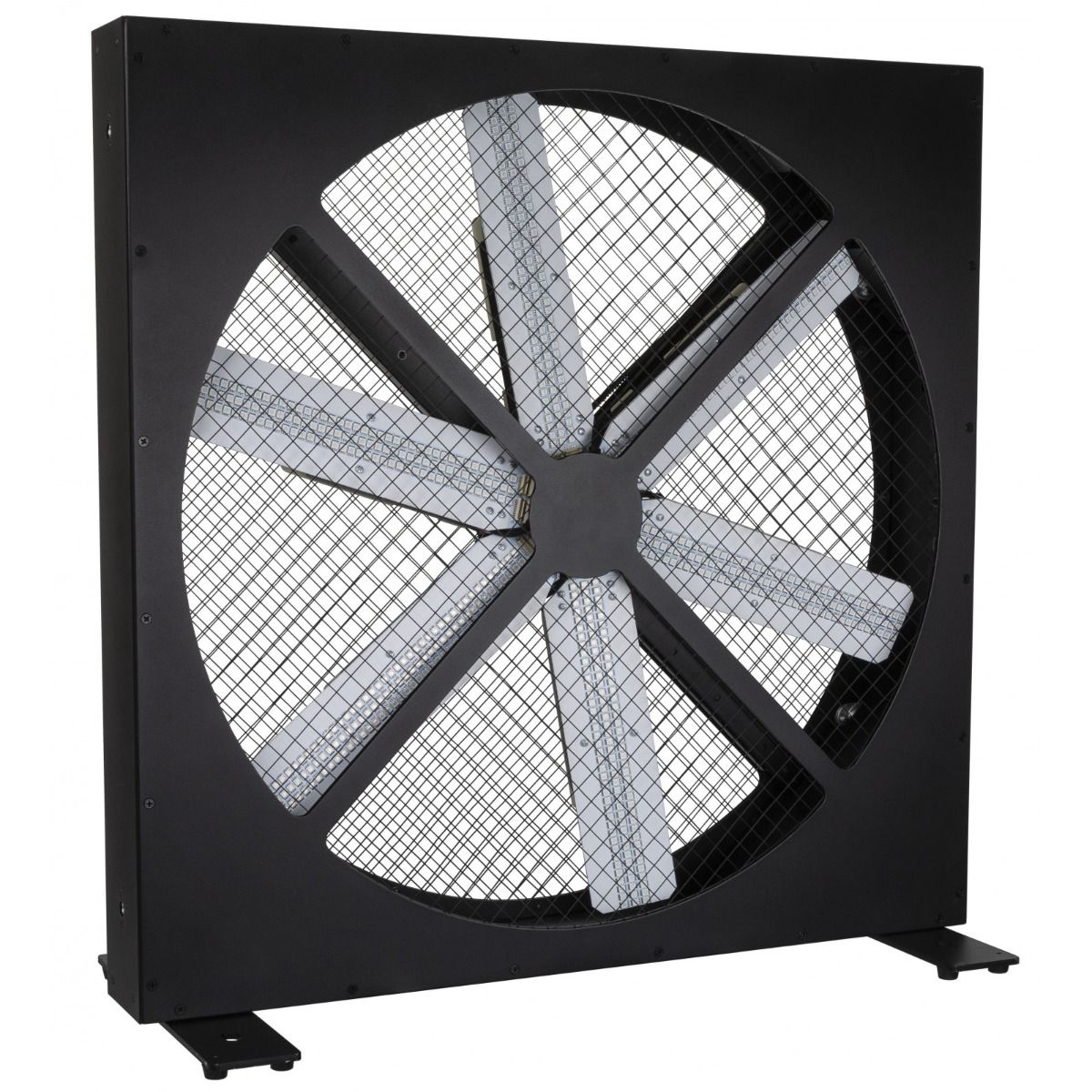

The BT-LEDROTOR is a high power 70x70cm LED-effect-fan for TV-Studios, Rental, …

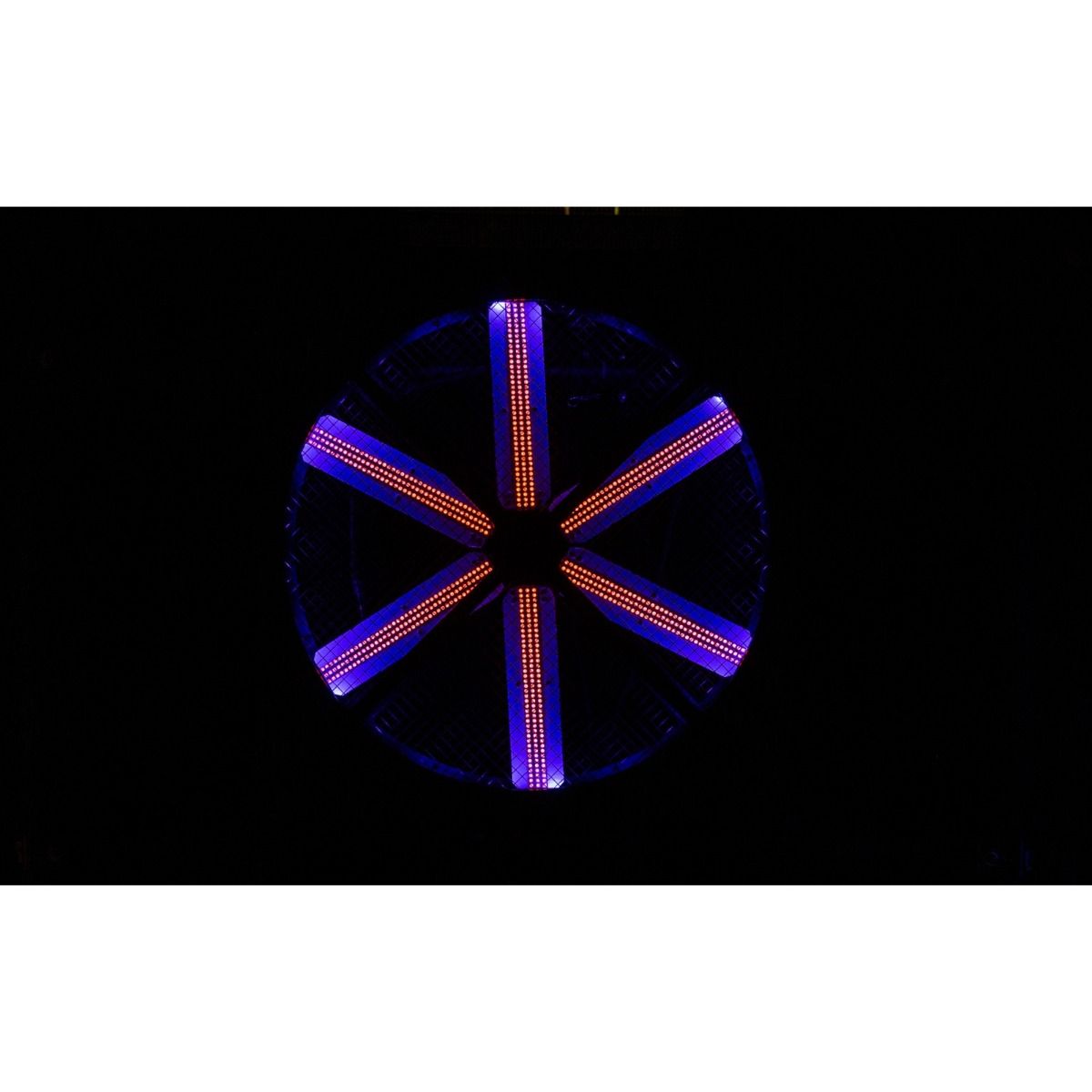

Each of the 6 fan blades is equipped with 5 sections of RGB-leds that you can control individually.
An additional ring of UV LEDs was added to create extra effects.
- High power 70x70cm LED-EFFECT FAN
- Use in all kinds of show applications: TV-studios (flicker free), Rental, Discos, …
- The 6 fan blades are equipped with in total 720 RGB-leds
- Each fan blade is split-up in 5 individual RGB-sections (total: 30 pixels)
- The output of each fan blade can be controlled individually!
- Amazing built-in pixels patterns + free pixel programming.
- 32pcs 3W UV-leds light up the white colored blades in the dark!
- There are 3 DMX-modes:
- 5 channels: The “easy” mode to recall a lot of built-in effects, without any programming
- 12 channels: Intermediate mode with more flexibility but still easy to use
- 33 channels: Full control of all functions, including pixel control!
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code : B04645)
- Very slow (0,3 RPM) to very fast bidirectional fan rotations
- RDM-function for: channel mode, DMX-address, temperature control, …
- OLED display with backlit touch buttons for easy configuration.
- Easy truss installation, thanks to 2 included omega brackets
- Easy floor installation, thanks to 2 included floor stands
- Smart placement of the in/out connectors to assure, almost invisible, cable routing.
- Easy daisy chaining: 3pin & 5pin + Neutrik® PowerCON® in/out
- 100V~240V 50/60Hz Power supply.
- A special 80x60cm flight case for transport of 4 units + cables and accessories is optionally available.
General : Dimensions (cm) 70 x 70 x 10 cm General : Weight (kg) 20 General : Powerinput AC 100 - 240V, 50/60Hz General : Energy Label No General : Power consumption W 240 General : Color black General : Display OLED General : Fixation included omega bracket General : IP rating indoor Control : Modes DMX Control : Protocol DMX, Wireless DMX, RDM Control : programmable No Control : upgradable software Yes Control : minimum DMX channels 5 Control : maximum DMX channels 33 Light : lamp socket No Light : lamp LED Light : colors RGB Light : mix colors Yes Light : max. refresh rate (kHz) No Connections : input 3 pin XLR, 5 pin XLR, wireless DMX optional, usb, rdm, PowerCon® or compatible Connections : output 3 pin XLR, 5 pin XLR, PowerCon® or compatible Brand BRITEQ EANCode 5420025655163
