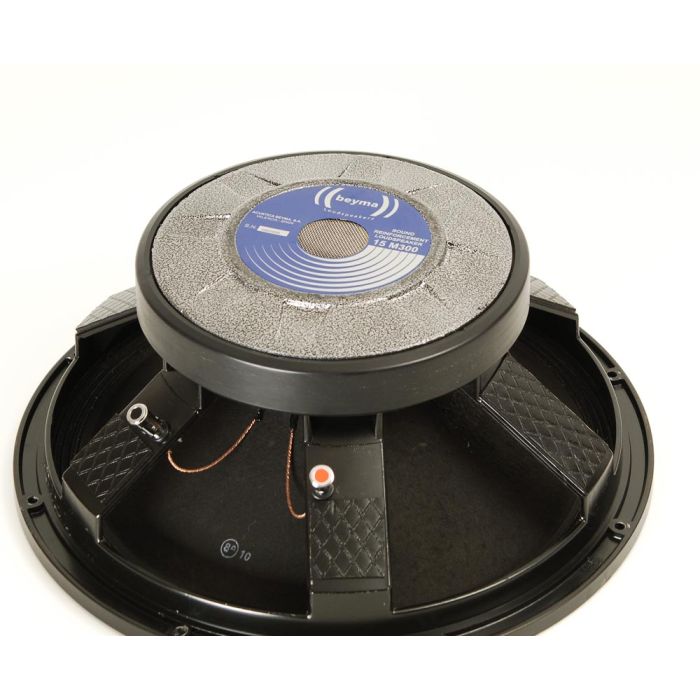

Beyma 15M300 Refurbiched speaker met nieuwe recone erin
€ 163,35
€ 135,00
?
Only 1 left
SKU
BEY-15M300
Beyma 15M300 Refurbiched speaker met nieuwe recone erin
Beyma 15M300 Refurbiched speaker met nieuwe recone erin
refurbiched houd in dat de luidspreker gereviseerd is en 100% werkend door het plaatsen van een nieuw binnen werk
Specifications | |
Nominal Basket Diameter | 15" / 380mm |
Impedance | 8 ohms |
RMS Power Rating | 300 Watts |
| Program Power | 600 Watts |
Frequency Response | 30Hz - 3.5kHz |
Sensitivity (1W/1m) | 100dB |
Voice Coil Diameter | 3" / 77mm |
| Recom. Enclosure Volume | 1.4-3.5 ft3 / 40-100 Liters |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 35 mm |
| Magnetic Assembly Weight | 21.12 lb. / 8 kg. |
Mounting Information | |
Overall Diameter | 15.28" / 388mm |
Bolt Circle Diameter | 14.56" / 370mm |
Baffle Cutout Diameter- |
|
| - Front Mount | 13.85" / 352mm |
| - Rear Mount | 13.97" / 355mm |
No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
Overall Depth | 6.38" / 162mm |
| Net Weight | 20.24 lb. / 9.2 kg. |
Shipping Weight | 22 lb. / 10 kg. |
Materials | |
Basket | Die Cast Aluminum |
Cone | Paper |
Surround | Plasticised Cloth |
Voice Coil | Edgewound Aluminum Ribbon |
| Magnet | Ferrite |
Thiele-Small Parameters | |
Resonant Frequency (fs) | 40 Hz |
Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 1.3 mH |
Mechanical Q (Qms) | 8.1 |
| Electrical Factor(Qes) | .28 |
Total Q (Qts) | .27 |
Comp. Equivelant Vol. (Vas) | 7.77 ft3 / 220 Liters |
Voice Coil Overhang (Xmax) | 3.5 mm |
| Reference Efficiency | 4.8% |
| Displacement Volume | 310 cm3 |
Low Freq. Response: Bass Reflex Cabinet-Vb=70L, Fb=60Hz |
