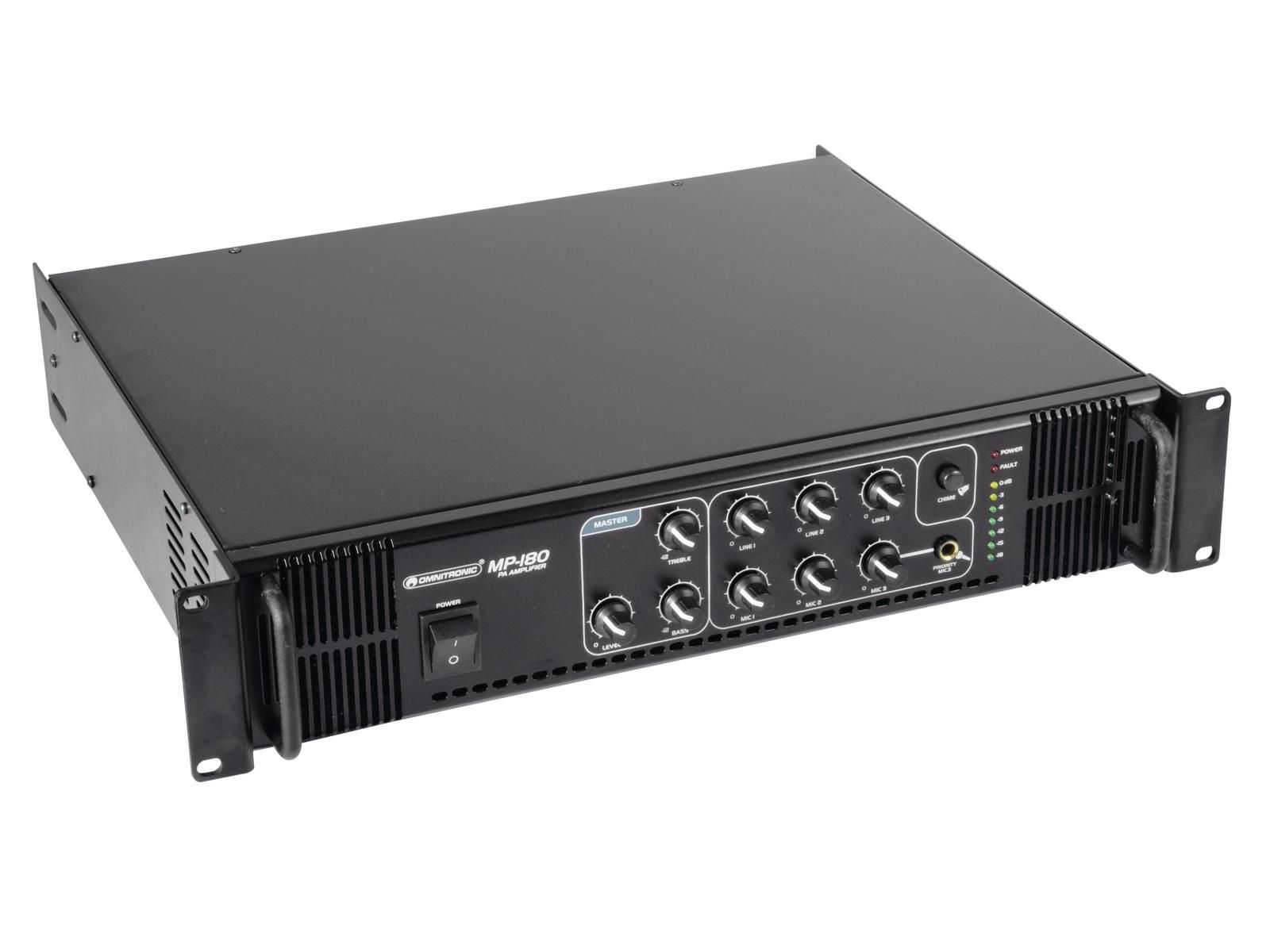

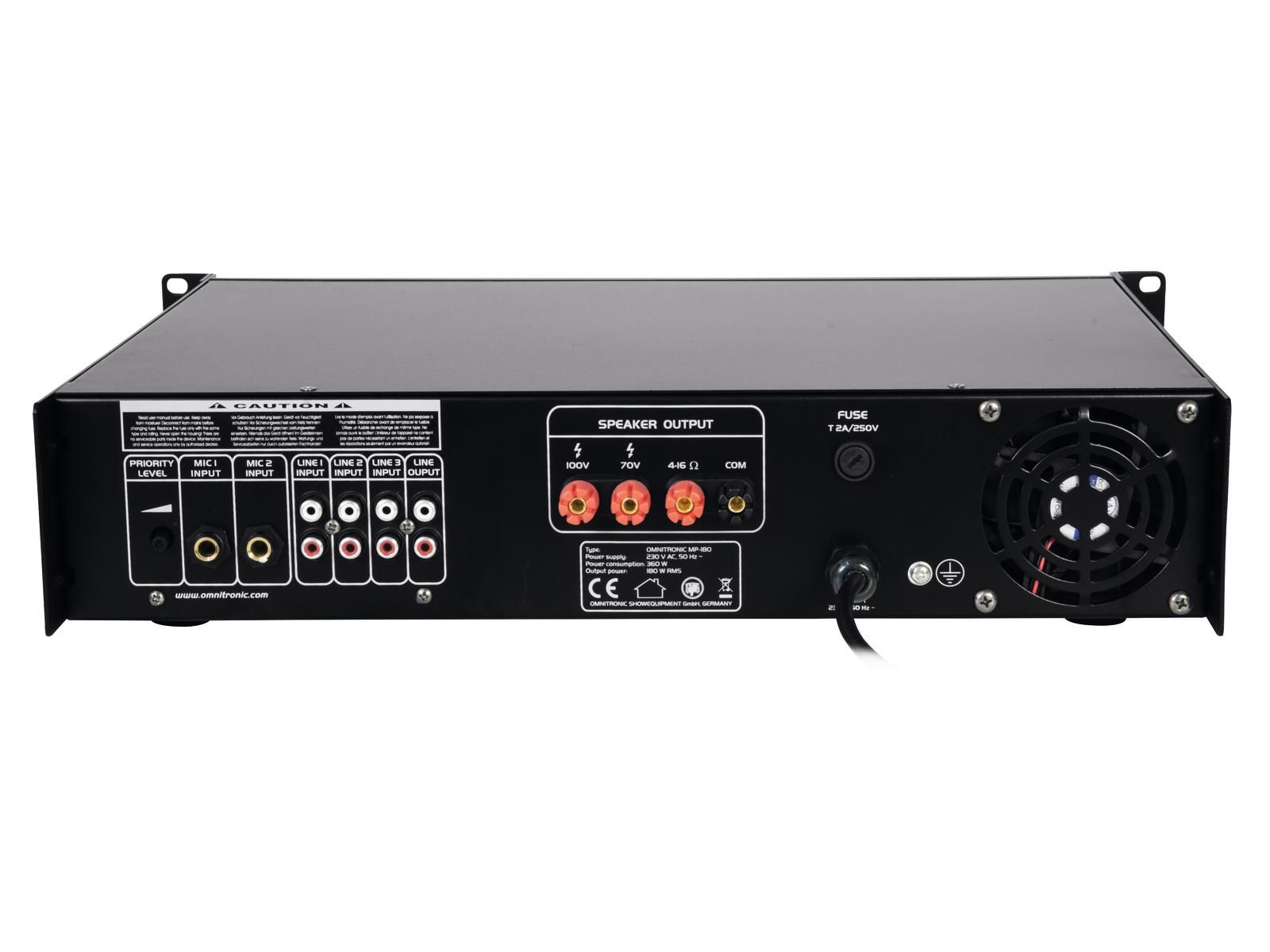

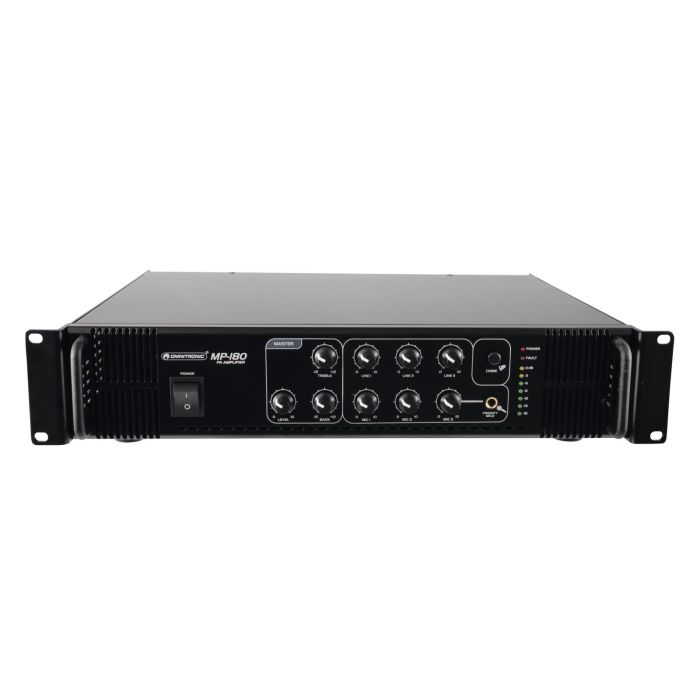

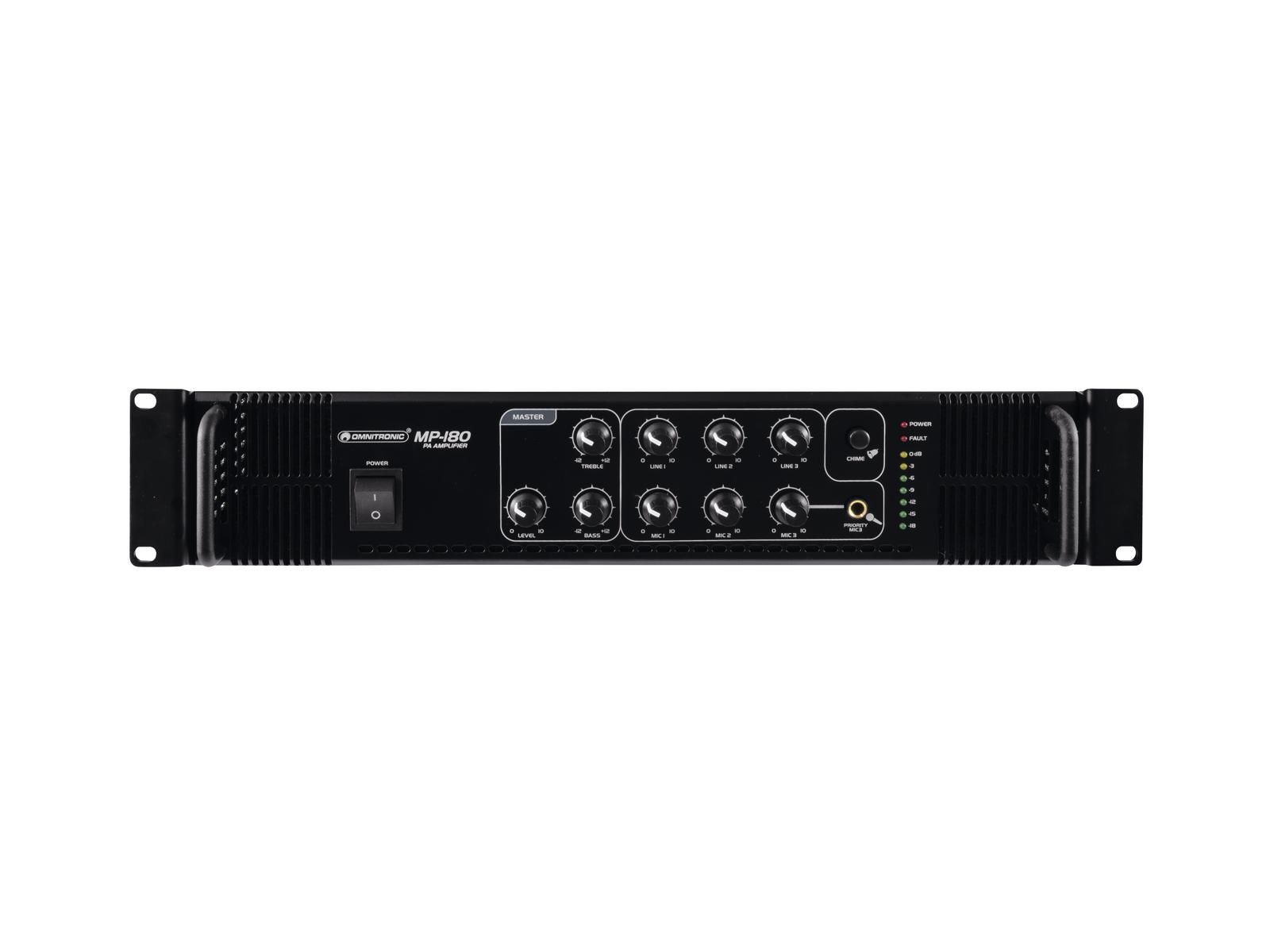

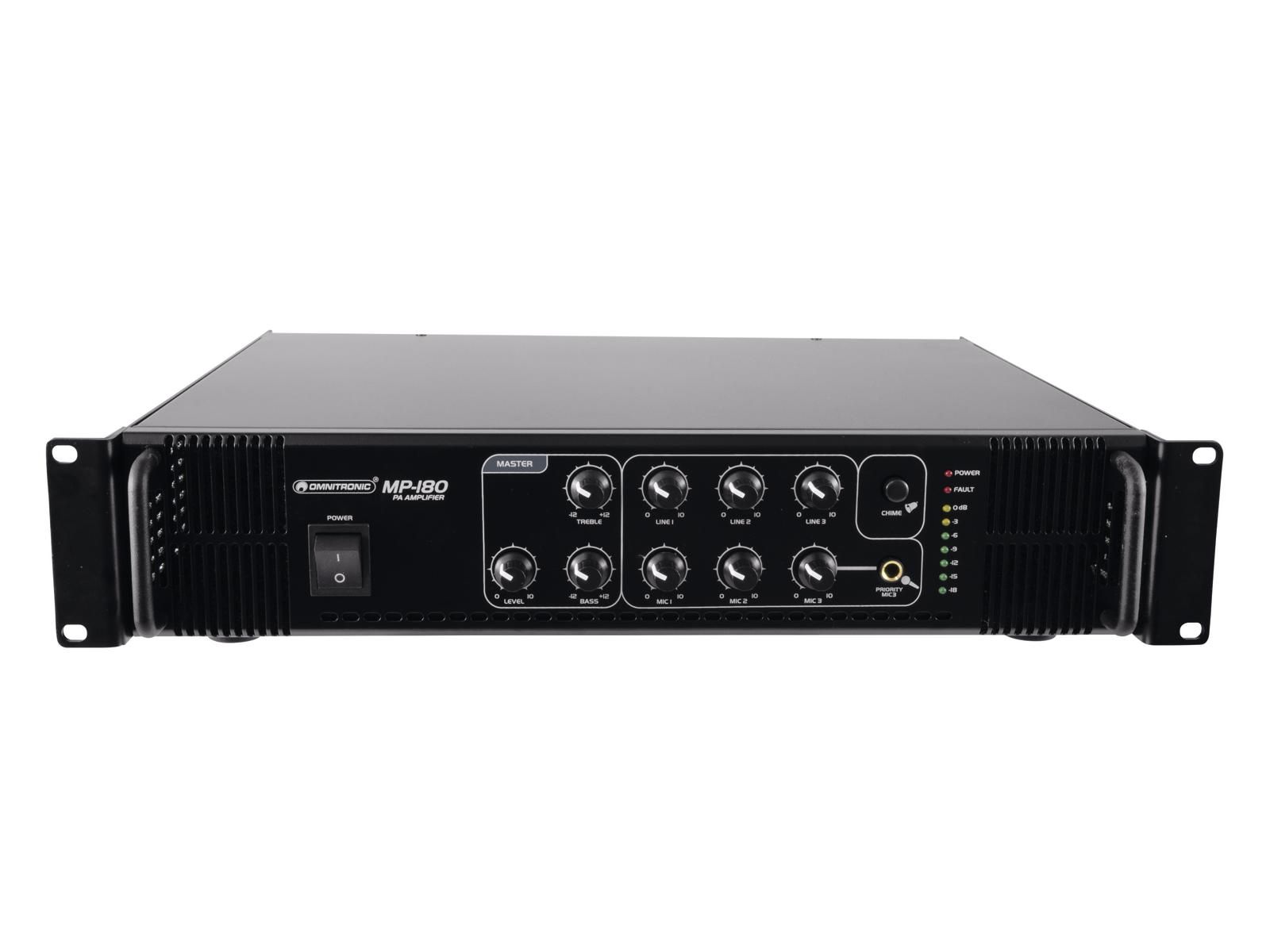

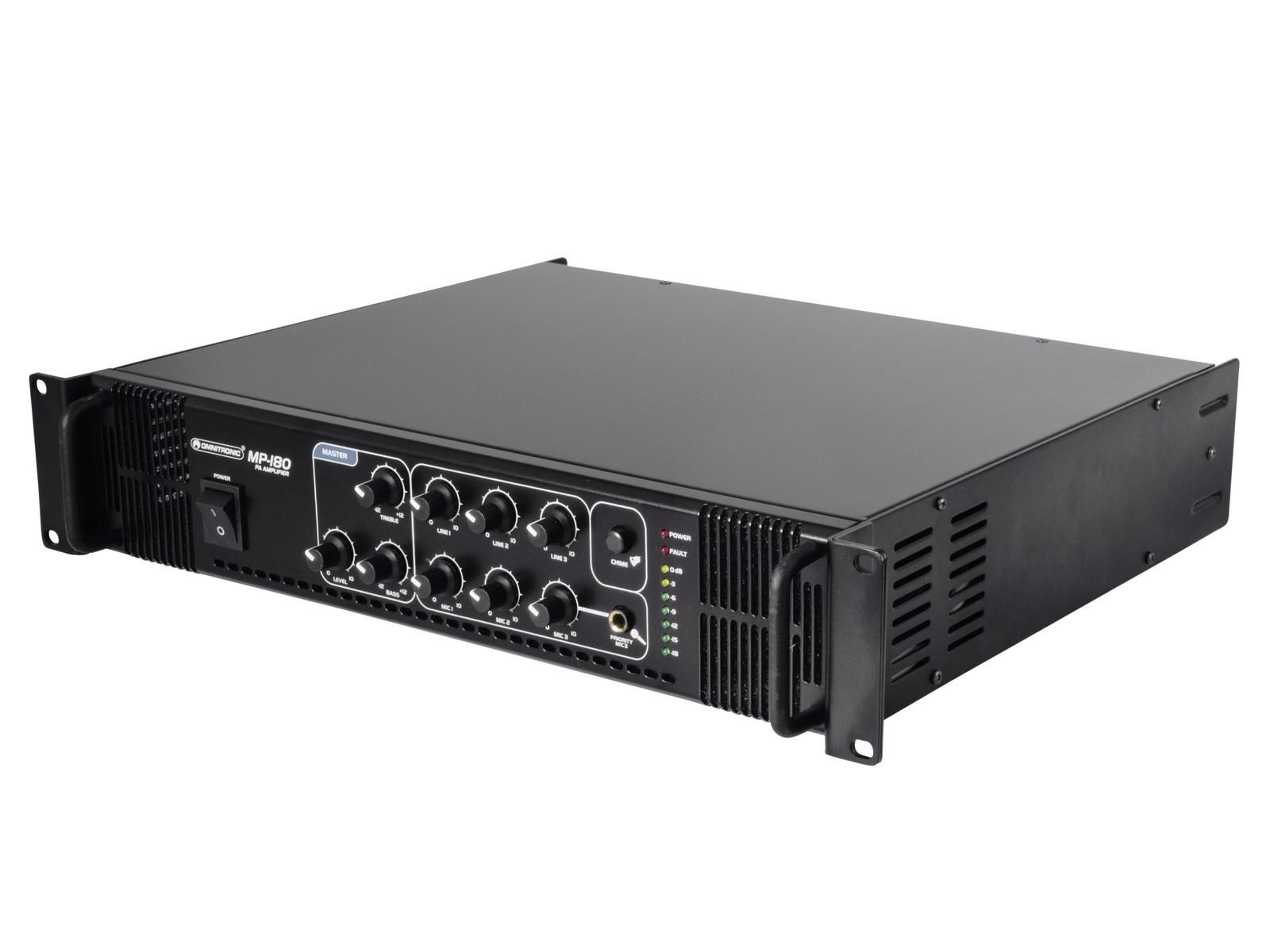

OMNITRONIC MP-180 PA Mixing Amplifier
€ 297,70
€ 246,03
?
SKU
st80709630
OMNITRONIC MP-180 PA Mixing Amplifier
OMNITRONIC MP-180 PA Mixing Amplifier
PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Fan-cooled
Protection circuits with LED indication: over current, short circuit, turn-on delay
Rack installation
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 360 W |
| Output power: | 180 W RMS |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Mic input: | 5 mV, 600 ohms |
| Line input: | 300 mV, 10 kohms |
| Output connectors: | Screw connectors |
| Frequency range: | 80 Hz - 14 kHz |
| S/N ratio: | 85 dB (line), 75 dB (mic) |
| Dimensions: | 483 x 400 x 88 mm |
| Weight: | 10 kg |
