Neutrik NF2D-9 WIT

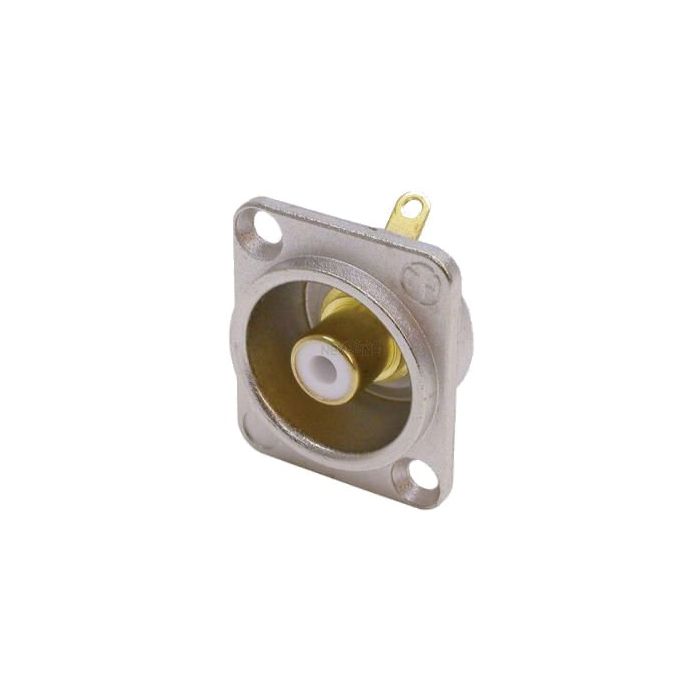

Neutrik NF2D-9 WIT Phono socket Nickel White Phono (RCA) / Phono (RCA) Sockets Chassis Phono (RCA) socket in D-shape housing. TECHNICAL DATA Rated Current: 16A Rated Voltage: 50V Insulation Resistance: 5 GOhm Contact Resistance: 10 mOhm Dielectric Strength: 500V Solderability acc. IEC68-2-20 Temperature Range: -25°C to +70°C Materials and Platings: Shell of the RCA : Brass, Au plated contacts : Brass, Au plated D-housing: ZnAl4Cu1, gal Ni or black Cr plating Insulator: PA6+30GF
