MADRIX LUNA 16 Port USB / Art-Net Node
€ 1.645,60
€ 1.360,00
?
SKU
st70064846
MADRIX LUNA 16 Port USB / Art-Net Node
MADRIX LUNA 16 Port USB / Art-Net Node
Features
Artnet and USB interface to issue 16 DMX universes
- MADRIX LUNA 16 is an easy-to-use and reliable Art-Net node with unique features
- Can also be used as DMX512 USB interface
- The device distributes DMX512 data over long or short distances using Ethernet network or USB
- 16 XLR ports (5-pin, female) distribute 16 DMX universes per unit (8192 DMX channels)
- 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
- Quick and easy installation in MADRIX
- MADRIX Sync Mode: Only MADRIX software and LUNA hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
- Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
- Fanless, low-energy design
- 19" metal case (2U) including brackets for rack mounting
- Ready within seconds after startup
- Automatic HTP merging for two Art-Net sources
- 5 status LEDs and built-in web configuration interface
- Recommended for any small or large installation
- Multiple devices can be used together without problems
- MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
- MADRIX supported operating systems: Microsoft Windows Vista | 7 | 8 | 8.1 | 10 (compatible with 32 bit and 64 bit)
- Installation instructions and software available in English, Spanish, French, and Simplified Chinese
- User manual available in English
- Quick start guide available in English and German
- Made in Germany
- Free software demo version, user manuals, and more information available at www.madrix.com

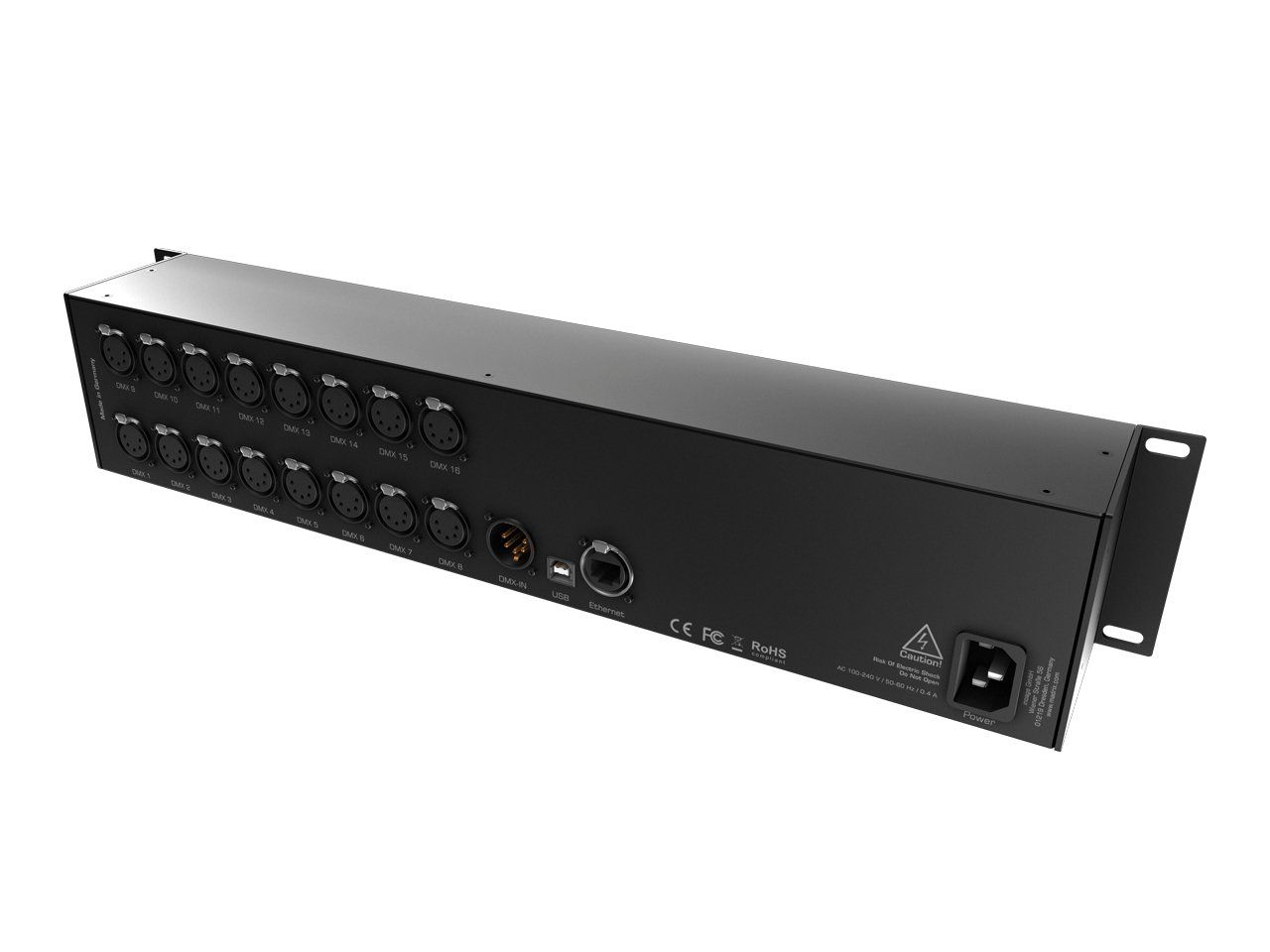

- Connectivity: 16x DMX-OUT, 1x DMX-IN, 1x RJ45 Ethernet port, 1x USB port, 1x Power socket
- Package Contents: 1x MADRIX LUNA 16, 1x Power cord (IEC C13), 1x USB 2.0 cable (certified), 2x Mounting brackets (already mounted to the device), 1x Quick start guide, 1x CD-ROM incl. MADRIX and USB drivers (software license not included)
- Made in Germany
- Height unit: 2 U
- Housing design: (19") 48,3 cm rack installation
- PC connect: USB
- Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz, 0.4 A max., IEC C14 inlet |
| DMX512 (OUT): | 16x 512 DMX channels output |
| DMX512 (IN): | 1x 512 DMX channels input |
| DMX512 ports (OUT): | 5-pin, XLR, female, NEUTRIK |
| DMX512 ports (IN): | 5-pin, XLR, male, NEUTRIK |
| Ethernet (Art-Net): | RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON |
| USB port: | USB 2.0, type B plug |
| Case: | Metal enclosure, IP20 |
| Size: | 19" x 2U |
| Dimensions (body only): | 76 mm x 440 mm x 88 mm (length by width by height) |
| Dimensions (total): | 76 mm x 482.6 mm x 88 mm (length by width by height) |
| Power consumption: | 5,00 W |
| Weight: | 2 kg |
| Height: | 8,9 cm |
| Depth: | 7,6 cm |
| Width: | 48,3 cm |
| Power connection: | Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) |
