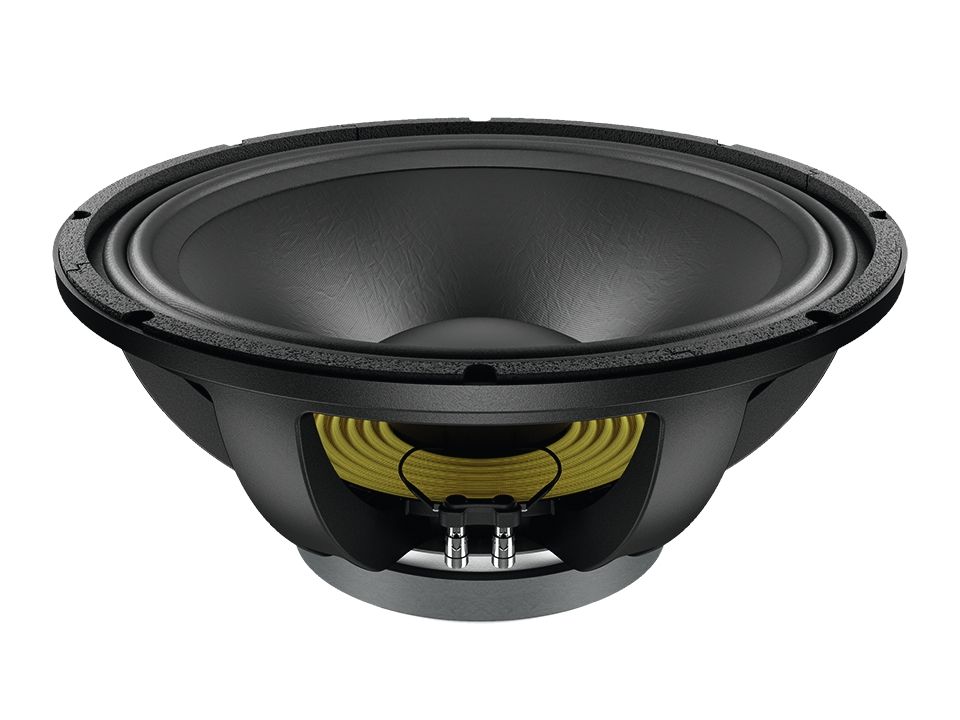

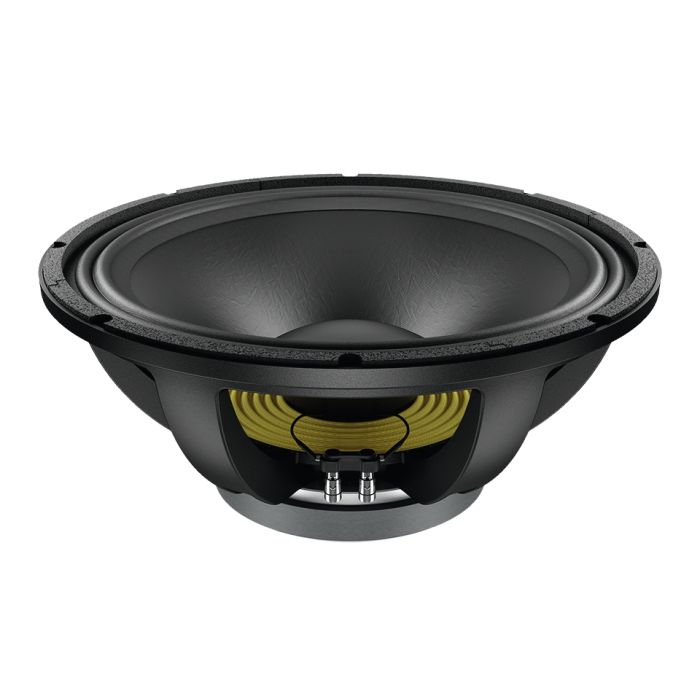

LAVOCE SAF184.01 18" Subwoofer Ferrite Magnet Aluminium Basket Driver
LAVOCE SAF184.01 18 "Subwoofer Ferriet Magnet Aluminium Basket Driver
700 W AES, 8 ohm, 99 dB, 30-1500 Hz
Type: 45 cm woofer (18 ")
Nominaal vermogen: 700 W AES
Programmakracht: 1400 W
Impedantie: 8 ohm
Gevoeligheid: 99 dB
Frequentiebereik: 30-1500 Hz
Spreekspoel diameter: 10 cm (4 ")
Chassismateriaal: aluminium
Magneetmateriaal: ferriet
Gewicht: 11,88 kg
ALGEMENE SPECIFICATIES
Nominale diameter mm (in.) 460 (18)
Nominale impedantie Ω 8
Minimale impedantie Ω 5,7
Programmakracht (1) W 1400
AES Vermogen (2) W 700
Gevoeligheid (3) dB 99
Frequentiebereik Hz 35 ÷ 1500
Spraakspoel diameter mm (in.) 100 (4)
Chassismateriaal Aluminium
Magneetmateriaal Ferriet

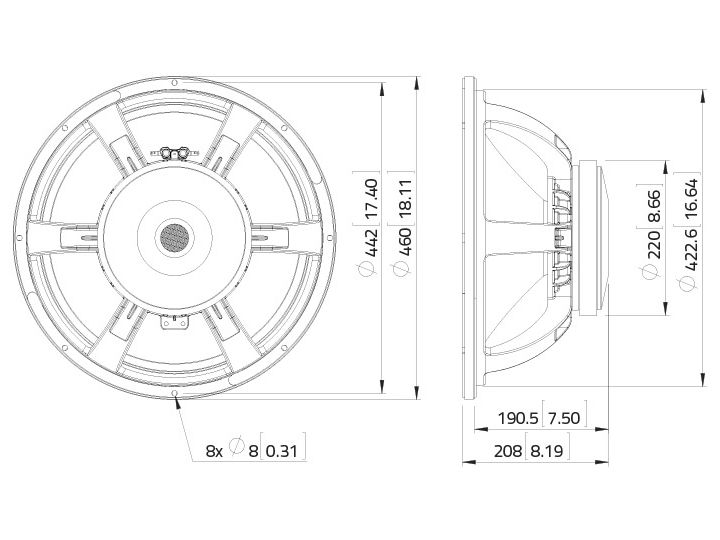

Afmetingen van de magneet
OD x ID x h
mm
(in.)
220 x 120 x 25
(8,66 x 4,72 x 0,98)
Spoelmateriaal Koper
Voormalig materiaal Glasvezel
Kegelvormig waterbestendig behandeld papier
Randmateriaal Polykatoen
Xmax (4) mm (in.) 8,5 (0,33)
Xmech (5) mm (in.) 12,5 (0,49)
Opening hoogte mm (in.) 8 (0.31)
Spreekspoelwikkeling hoogte mm (in.) 21 (0.83)
KLEINE SIGNAALPARAMETERS
DC-weerstand Re Ohm 4,9
Resonantiefrequentie Fs Hz 30
Bewegende massa Mms g (oz) 198 (6.98)
Naleving Cms mm / N 0,12
Force factor BxL N / A 26
Mechanische Q-factor Qms 5,8
Elektrische Q-factor Qes 0,3
Totale Q-factor Qts 0,3
Equivalent luchtvolume Vas l (ft3
) 235 (8,3)
Spraakspoel Inductantie Le mH 1,57
Diafragma gebied Sd cm2
(in 2
) 1225 (189,9)
Referentie-efficiëntie Eta 0% 2,8
VERZEND INFORMATIE
Netto gewicht Kg (lb.) 11,88 (26.2)
Multipack-grootte (1)
W x D x H
mm x mm x mm
(in. x in. x in.)
558 x 558 x 245
(22 x 22 x 9,7)
Multipackgewicht Kg (lb.) 13 (28.7)
