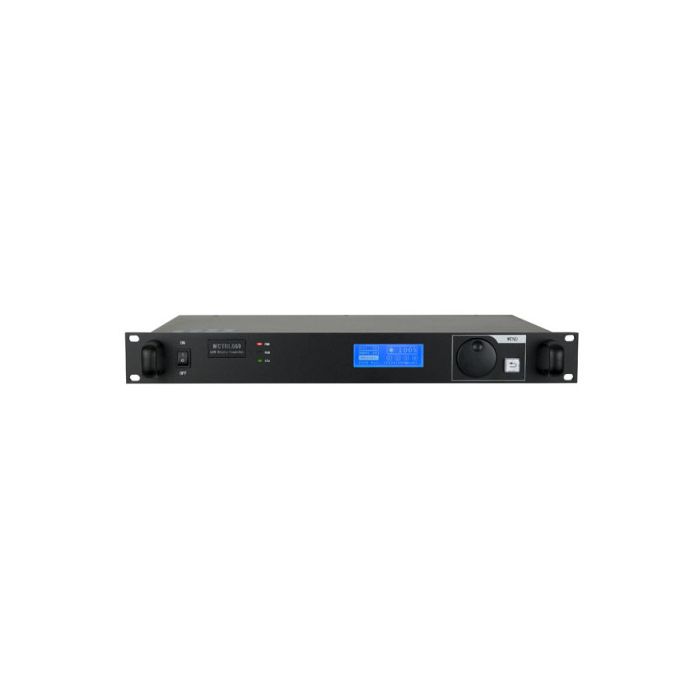

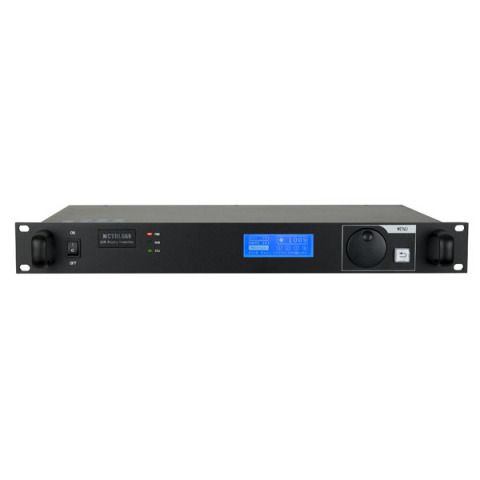

DMT Novastar MCTRL-660 Sender Box

DMT Novastar MCTRL-660 Sender Box

• Cabinet config files saving and sending
• Brightness, Color and Test Pattern adjustable by knob
• Full HD Pixels capacity
• HDCP & 12-bit HDM

The MCTRL-660 is the right alternative for those users who wants to setup their LED screen without the need of a connected PC but who are still looking for an affordable solution.
The MCTRL-600 makes setting up your LED Screen with Novastar controlsystem easy and plug and play. It has a built-in HDMI input (HDCP supported) as well a DVI input allowing you to play your content easily and without big hassles on your LED screen.
Specifications

Input Resolution: 1920x1200, 2048x1152, 2560x960 (width and height can be specially defined by customers)
Capacity: 2.3 million pixels.
Supply Voltage: AC-100-240V-50/60HZ
Control Method: USB Interface
Video Interface: HDMI/DVI
Audio Interface: HDMI/3.5mm
Video Format: RGB, YCrCb4:2:2, YCrCb4:4:4

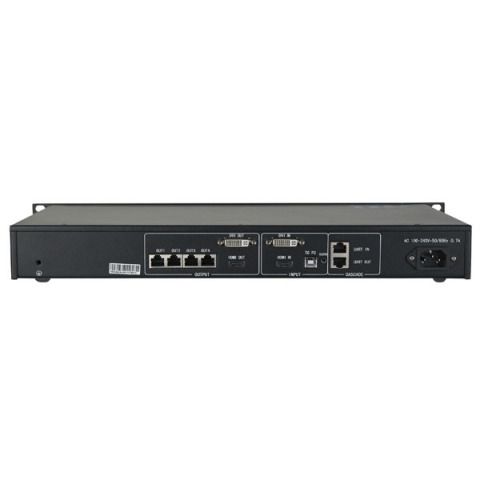

Output Interface: 4 Ethernet ports
Bit Depth Of Video Resource: 8/10/12bit
